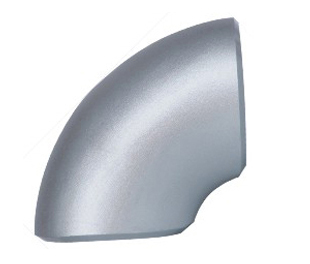

90弯头
产品分类：冲压管件
概述
| 规格表1 | |||||||||
| 公称通径 | 外径（MM） | 中心距至端面的距离 | 理论重量KG/PCS | ||||||
| - | - | - | F | P | 5S | 10S | 20S | 40S | 80S |
| 20 | 3/4 | 25 20.7 | - | - | - | - | - | - | - |
| 25 | 1 | 32 33.4 | 25 | 50 | 0.055 | 0.096 | 0.11 | 0.11 | 0.15 |
| 32 | 11/4 | 38 42.2 | 32 | 64 | 0.069 0.075 | 0.102 0.132 | 0.14 0.15 | 0.158 0.17 | 0.20 0.236 |
| 40 | 11/2 | 45 48.3 | 38 | 76 | 0.12 0.13 | 0.18 0.186 | 0.2 0.21 | 0.22 0.24 | 0.3 0.33 |
| 50 | 2 | 57 60.3 | 51 | 102 | 0.17 0.176 | 0.297 0.308 | 0.787 0.396 | 0.42 0.44 | 0.6 0.616 |
| 65 | 21/2 | 73 76.1 | 64 | 128 | 0.35 0.364 | 0.53 0.546 | 0.64 0.655 | 0.89 0.91 | 1.0 1.29 |
| 80 | 3 | 89 | 76 | 152 | 0.486 | 0.729 | 0.972 | 1.36 | 1.94 |
| 90 | 31/2 | 101.6 | 89 | 178 | 0.7 | 1.05 | 1.4 | 1.96 | 2.8 |
| 100 | 4 | 108 114.3 | 102 | 204 | 0.90 0.94 | 1.2 1.4 | 1.7 1.876 | 2.56 2.77 | 4.0 4.13 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 | 1.8 2.02 | 2.1 2.37 | 3.2 3.49 | 4.0 4.4 | 6.5 6.98 |
| 150 | 6 | 159 168.3 165.2 | 152 | 304 | 2.6 2.9 | 3.1 3.4 | 4.8 5.0 | 6.8 7.1 | 10.3 11.0 |
| 200 | 8 | 219 216.3 | 203 | 406 | 6.25 5.0 | 7.0 6.8 | 11.08 10.7 | 14.1 13.5 | 22 21 |
| 250 | 10 | 273 267.3 | 254 | 508 | 10.08 9.7 | 11.2 10.0 | 17.6 16.0 | 24.6 23.0 | 44.8 40.0 |
| 300 | 12 | 325 323.9 318.5 | 305 | 610 | 14.8 | 16.7 | 23.3 | 37 | 64.5 |
| 350 | 14 | 377 355.6 | 356 | 711 | 19.1 15.6 | 22 19.5 | 38 34 | 48.6 42.6 | 80.0 74.0 |
| 400 | 18 | 426 406.4 | 406 | 812 | 29.0 26.5 | 35 30 | 57.0 49.9 | 67 62 | 149.0 135.0 |
| 500 | 20 | 529 508 | 508 | 1016 | - | - | - | - | - |
| 550 | 22 | 559 | 559 | 1118 | - | - | - | - | - |
